Universal IPX8 Waterproof Phone Pouch with Camera Window

Sealock manufactures the Universal IPX8 Waterproof Phone Pouch with Camera Window, model SL-A064 — a new-generation dual-window design built around one standout feature: an independent rear camera window that lets you take photos and video without ever taking the phone out of the pouch. The clear front window keeps the touchscreen fully responsive for messaging, navigation and apps, while the heat-sealed soft PVC body, silicone seal strip and dual ABS slide locks give this waterproof phone pouch an IPX8 rating tested for underwater use to 30 m. It fits most smartphones up to 7.0" and comes with an adjustable neck lanyard for hands-free carry.

At a Glance

• Rear camera window — shoot clear photos and video without removing the phone.
• Front full touch window — messaging, navigation and apps stay responsive.
• IPX8 to 30 m — heat-sealed PVC with a silicone seal and dual ABS locks.
• Fits phones up to 7.0" — iPhone, Galaxy, Pixel, Xiaomi, Huawei and more.
• Hands-free — adjustable neck lanyard included, just 60–70 g.

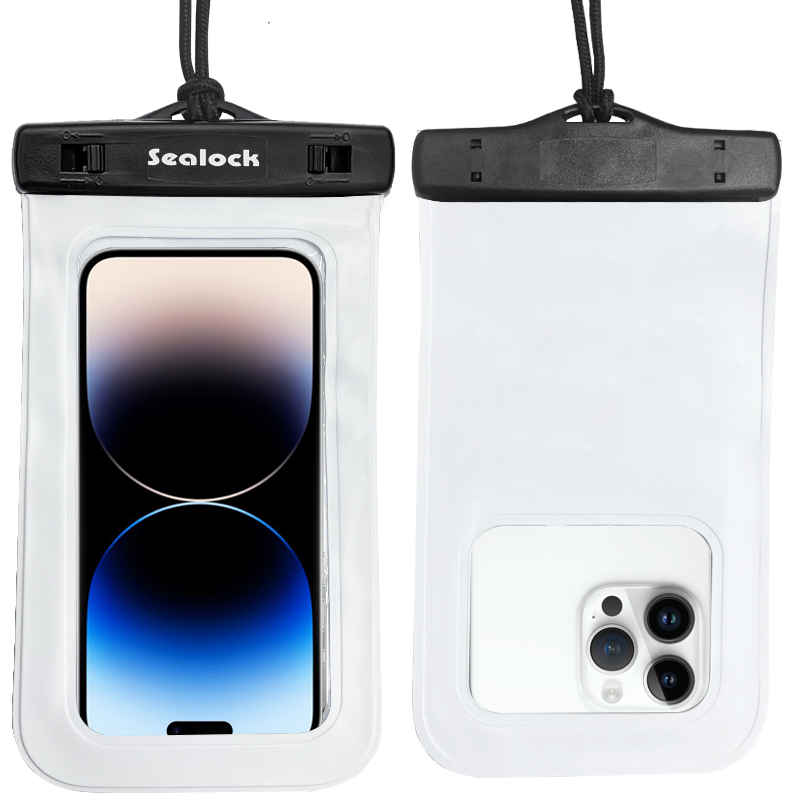

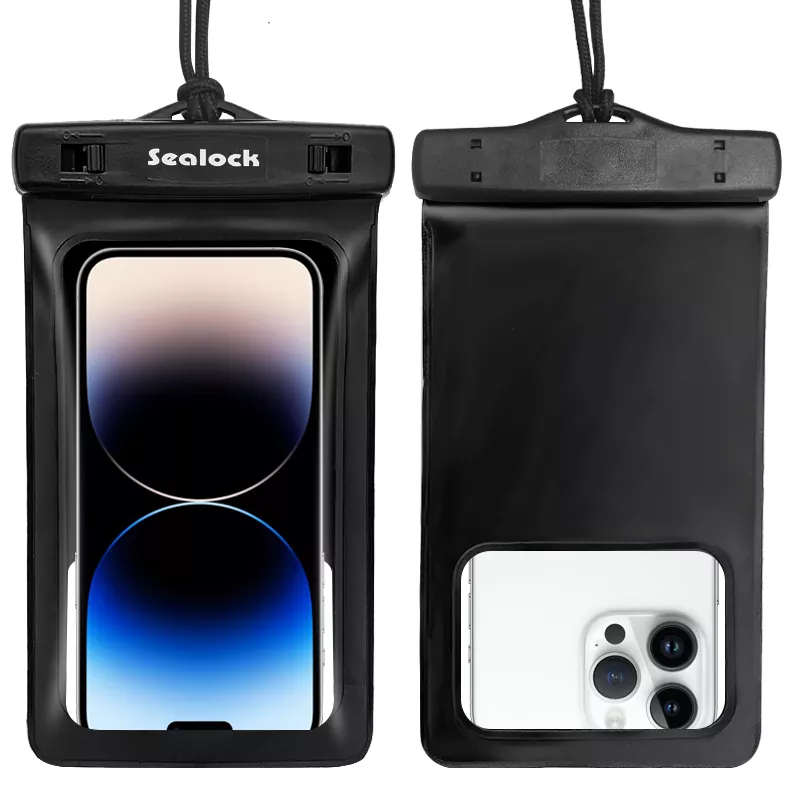

Dual Windows — Touch in Front, Camera in Back

This is what sets the SL-A064 apart from an ordinary phone pouch. The front is a clear, responsive touch window for full screen control; the back has an independent transparent lens window aligned to your phone's cameras, so you can frame and shoot photos and video — above or below the water — without breaking the seal or fishing the phone out. It turns a waterproof pouch into an underwater camera housing for snorkeling, kayaking, surfing and the beach.

IPX8 Sealing to 30 m

The pouch body is heat-sealed soft PVC with a waterproof silicone seal strip, closed by a dual ABS slide-lock system that presses the seal shut and resists accidental opening. Rated IPX8, it is designed for underwater use to 30 m and keeps out water, sand, dust, snow and mud. Every unit is leak-tested — inflated and submerged to confirm there is no bubble leakage before it ships.

Universal Fit and Touch Control

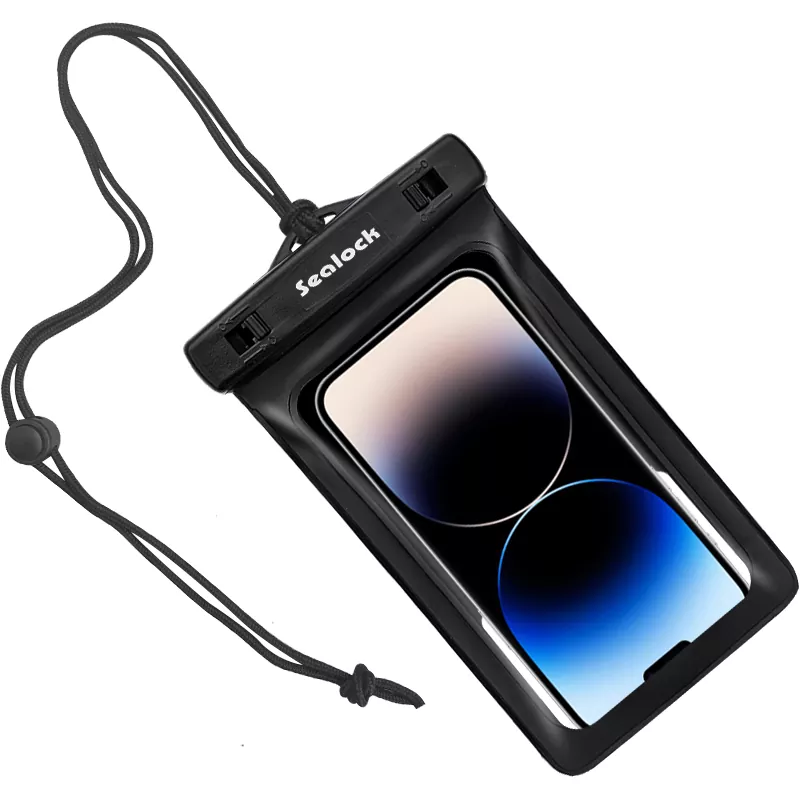

The pouch fits most smartphones up to 7.0" — iPhone, Samsung Galaxy, Google Pixel, Xiaomi, Huawei and other Android devices. The premium soft PVC film keeps the touchscreen sensitive for typing, navigation and app control, and supports Face ID through the front window. An adjustable neck lanyard (about 45 cm) with a stainless-steel ring keeps the phone secure and hands-free, at a packable 60–70 g.

1. Engineering Specifications

Item	Specification
Brand	SEALOCK
Model No.	SL-A064
Product Name	Universal Waterproof Phone Pouch with Camera Window
Product Category	Waterproof Phone Pouch / Dry Pouch
Manufacturing Process	Heat-Sealed Seams
Waterproof Structure	Heat-Sealed PVC Body + Silicone Seal + Dual ABS Slide Lock
Closure Type	Dual Slide Lock (ABS)
Waterproof Rating	IPX8 — underwater to 30 m
Windows	Front Full Touch Window + Rear Camera Window
Compatible Phone Size	Up to 7.0"
External Size	approx. 22 × 11.5 cm
Internal Usable Area	approx. 18.5 × 9 cm
Touch Screen Support	Yes
Face ID Support	Yes
Underwater Photography	Yes (rear camera window)
Lanyard	Adjustable Neck Lanyard, approx. 45 cm
Net Weight	approx. 60–70 g
Colour	Black / Frost White
Country of Origin	Guangdong, China

2. Material Specifications

Component	Material	Purpose
Bag Body	Soft Transparent PVC	Clear, flexible, heat-sealable waterproof shell
Front Window	Soft Transparent PVC Film	Responsive touchscreen operation
Rear Window	Optical-Clear PVC Lens Window	Photo and video capture without removing the phone
Lock	ABS Engineering Plastic	Dual slide-lock closure
Seal Strip	Waterproof Silicone Seal	Continuous seal along the opening
Seams	Heat-Sealed	Needle-hole-free waterproof joints
Lanyard	Nylon Braided Cord	Adjustable hands-free carry
Metal Ring	Stainless Steel	Corrosion-resistant lanyard attachment

3. Functional Specifications

Feature	Description
Waterproof Protection (IPX8)	Heat-sealed PVC with silicone seal and dual ABS locks; rated for underwater use to 30 m.
Rear Camera Window	Independent lens window captures photos and video without removing the phone.
Front Touch Window	Full touchscreen control for messaging, navigation and apps.
Face ID	Supported through the clear front window.
Universal Fit	Fits most smartphones up to 7.0" across major brands.
Secure Closure	Dual ABS slide locks resist accidental opening under pressure.
Debris Protection	Keeps out water, sand, dust, snow and mud.
Hands-Free Carry	Adjustable neck lanyard with stainless-steel ring.
Lightweight	Just 60–70 g and packs flat.

4. Customization / OEM Specifications

Option	Available
Colour	Black · frost white · custom colour
Phone Size	Configurable up to 7.0"+
Window Configuration	Front touch · front + rear camera window
Lanyard	Length and style options · armband option
Lock / Seal	Dual ABS slide lock (standard)
Logo Methods	Silk-screen · UV printing
Private Label & Packaging	Retail gift box · instruction manual · barcode sticker
Promotional Branding	Available
Full Custom Development	Ground-up development from sketch, sample or target spec
MOQ	300 pcs
Sample Lead Time	7–15 days
Production Lead Time	30–45 days
Factory Audit	Available
OEM / ODM	Supported

Our OEM/ODM capability goes well beyond colour and logo changes: bring a sketch, a sample or a target spec — phone size, window configuration, lock type, lanyard style and retail packaging — and our China base develops it from the ground up into a finished original product. The rear-camera-window design is well suited to private-label dive, watersports and travel brands; share your spec and launch date and we will schedule sampling.

5. Packaging Specifications

Item	Details
Individual Packaging	Poly Bag / Colour Box
Carton Quantity	200–300 pcs
Carton Size	approx. 58 × 40 × 35 cm
Gross Weight	approx. 16–18 kg
Retail Gift Box	Available (OEM)
Instruction Manual	Available (OEM)
Barcode Sticker	Available
Shipping Mark	Available
Pallet Packing	Optional

Recommended Use

Activity	Suitability
Swimming / Snorkeling	✔
Kayaking / Canoeing / Paddle Boarding	✔
Surfing / Sailing / Boating	✔
Fishing / Rafting	✔
Water Parks / Beach	✔
Camping / Hiking / Travel	✔
Underwater Photography (to 30 m)	✔ — via rear camera window

Quality Inspection Standards

Inspection Item	Standard
PVC Film & Window Inspection	100%
Heat-Seal Seam Inspection	100%
Lock & Silicone Seal Check	100%
Inflate & Submerge Leak Test	100%
Touch Sensitivity Check	Random sampling
Rear Window Clarity Check	Random sampling
Lanyard & Ring Pull Test	Random sampling
Appearance Inspection	100%
Carton Inspection	100%

Inspection runs IQC on incoming PVC film, locks and silicone seal, IPQC on heat sealing and lock installation in process, and OQC before shipment with an AQL check and a 100% inflate-and-submerge leak test. Third-party inspection (SGS / QIMA) is available on request.

Product Highlights

Feature	Advantage
Rear Camera Window	Shoot photos and video underwater without removing the phone
Front Touch Window	Full screen control and Face ID stay usable
IPX8 to 30 m	True submersion protection, not just splash
Dual ABS Slide Lock	Secure seal that resists accidental opening
Universal up to 7.0"	Fits nearly every current smartphone
60–70 g with Lanyard	Light, packable and hands-free

Printing & Logo Options

Brand it your way: silk-screen and UV printing in black, frost white or a custom colour, with retail gift box, instruction manual and barcode sticker for private-label programs.

OEM / ODM and Wholesale

As the factory, we supply the SL-A064 for OEM, ODM and wholesale buyers from an MOQ of 300 pcs, FOB Guangdong, with samples in 7–15 days and production in 30–45 days. We customize colour, phone size, window configuration, lanyard style, logo and retail packaging, and we offer full ground-up custom development. For a custom or wholesale waterproof phone pouch program under your own brand, send your spec and target quantity and we will quote against it.

Need a simpler dual-size phone pouch? See our universal waterproof phone pouch.

FAQ

Can I really take photos without removing the phone?

Yes — that is the point of the design. The independent rear camera window sits over your phone's lenses, so you can frame and shoot photos and video, above or below the water, with the phone sealed inside.

How waterproof is it?

It is rated IPX8 for underwater use to 30 m, with a heat-sealed PVC body, a silicone seal strip and dual ABS slide locks. Every unit is leak-tested by inflating and submerging it before shipment. We recommend a quick home test — seal a tissue inside and submerge — before first use.

What phones does it fit?

Most smartphones up to 7.0", including iPhone, Samsung Galaxy, Google Pixel, Xiaomi and Huawei. The touch window supports Face ID.

What are the MOQ and lead times?

MOQ is 300 pcs, FOB Guangdong, with samples in 7–15 days and production in 30–45 days. Black and frost white plus custom colours, logos and retail packaging are available. Send your spec for a quote.

Request a Quote

Sealock (YiFuLong Outdoor Gear Co., Ltd.) has built waterproof gear in Guangdong since 2003. To order the SL-A064 or start an OEM/ODM program, send us your colours, phone size, logo and target quantity for pricing and lead time. MOQ 300 pcs · samples 7–15 days · production 30–45 days.
